thanks, yes it was very easy, i warmed my engined up to soften the rubber and just pull out gently and put leds in (make sure they are in the right way) then push the rubber back in.
Printable View
thanks, yes it was very easy, i warmed my engined up to soften the rubber and just pull out gently and put leds in (make sure they are in the right way) then push the rubber back in.
Yeah those do look good. Do you think that's as bright as the halos can get?
i'm sure there are ways to make them brighter, but i dont have time to figure that out. but probably someone here will. i'm too focused on doing my rear drum to disc conversion and putting new suspension and struts in and tuning up my car. too much to do in such little time.
just a heads up, one of my leds got stuck and i had to pretty much destroy it to get it out of the housing. Trimmed off the edges on another one for a better fit. will do the same for 3 more and if its a big improvement i guess i will modify the remaining 12 and replace the bulbs.
I just got my headlights install, I oder some HI brightness bulb for the halos.Quote:
Originally Posted by aznlverboy
I'm going to take some pics to see how there look.
yes bro, there are 194. Get then as brighter you could get then. Get the ones like 5 to 10 leds inside. I will post pics soon i oder some blue bolbs. By the way you need 16 bulbs in total, 8 bulbs for 2 halos. 4 bulbs for each halo.Quote:
Originally Posted by The Professional
Nice. I put the side leds as my signal light, the reasons is the side leds over power the halos. If you do that there look great. I'm still waiting for the 194 leds that i oder last week for the halos. I still need to by another HID kit for my high beans. I will post picks as soon i wet then. Also this week i'm going to change my engine.Quote:
Originally Posted by aznlverboy
I've tried to follow this thread as much a possible... did any body.. other than the brightnes problem....did anybode find a big problem with them?... other than that half in under to the bumper... that SOME had.. not all : / lol
any fogging? does in need bottom drillin' for leaks?
Yes i'd like some follow up from posters on here that have had the heads for a while.. anything that you wish was different/taken into consideration before buying/different with design/looking like its not gonna last long?
Since my opinion is kinda different from everybody elses, I just wanted to say that I like these headlights and the LEDs are dope. I didn't wire mine to the turn signals tho, I just wired them to a new switch next to my fogs. I think the LEDs really set these headlights apart from other projectors on the market. And honestly, I have no complaints with these headlights. As long as you wire them to your liking, you'll be satisfied.Quote:
Originally Posted by Serstylz2
^x2!!!
~Gabe
The headlights look great on the Galant. When my brother was borrowing my car, by chance, my wife and I was out driving in my other car and we seen him pass us in the opposite direction and I was like, "Damn, my Galant looks pretty tight with those headlights". It was cool to see my Galant from a different perspective, as if it was someone else's car. It was almost dusk and he had the HID's on and it looked nice. The 8G is a bad ass looking car even after 10 years.
I have to admit - I don't like the light output. I was so used to the reflective lens of the old style headlights that the HID light pattern could be seen for damn near 1/2 a mile down the road on signs. Now, the light pattern can only be seen on signs that the now distinct cutoff line just so happens to fall on, which is only a few hundred feet at best (and I'll eventually need to use the high beams now, something that wasn't necessary with the stock headlights and HID bulbs). I guess I'm just not used to it.
Another thing I don't like about these headlights is that it's not a perfect or even near-perfect fit, as it doesn't line up in the holes correctly to secure the headlights to the frame. It could be my Galant as I haven't really read any other complaints about it.
Overall, if you're going for the projector headlight-look for your Galant, then these headlights hit a home run. The price is not much more than stock 8G headlights. They are dual headlights, and have Halo's and LED's. The headlight housing is a little bit slimmer than stock, so the headlights will slide into the frame with little effort. However, you may encounter certain issues if you're not familiar with modding your car:
- Like the screw holes not lining up, or if you use the screw at the top of the headlight to secure it to the frame there will be a gap under the headlight near the bumper. My solution was not to use the top screw holes so there wouldn't be a gap. But even if I used the top screw holes, I wouldn't be able to use screw holes near the radiator - so I had to sacrifice one or the other because like I said, the screw holes don't line up. Eventually, I may just drill a new hole for the top screw because the headlights are sitting someone loose (because the only screws securing it to the frame is the two screws near the radiator. I didn't use the screw near the turn signal, either).
- Having to ghetto rig your H4 HID bulb in order for the H1 HID bulb to work (while using the existing H4 HID kit ballast and wires without having to splice or buy any additional stuff in order to have HID). It wasn't as simple as removing the H4 HID bulb and replacing it with the H1 HID bulb. It required a little ingenuity to get it working.
- No instructions on how to connect the LED's or Halos, however, it's not that hard if you're remotely familiar with working with positive and negative wires. The funny thing is, I thought the halo light wasn't working when I connected the wires. It was just that the light output was so weak that at first, I didn't notice that they were on and I was doing the work in a semi-dark garage. When I last tested it, the 3 LED's on the driver side headlight didn't work. I never tested the LED's on the passenger side. I won't be using these anyhow as I will be using yellow LED's for the halo and yellow 1157's for the turn signal, to match the yellow fog lights.
These are just some of the issues I encountered. My main goal was just to have the look of projectors. I didn't think I was going to have the issues I'm having, but they can be corrected by adding more time to work on them. I installed them on a lunch break and that was about it (less than one hour). I'm going to pick up the Galant sometime today from my Mom's house and I'll install those LED 194 bulbs, however, I don't expect any real difference. I ordered two sets of bulbs. One set has 3 LED's and the other set looks as if it contains only one LED per bulb (I'll end up using these in the gauge cluster of both of my cars as there are 20 bulbs in this set I got off Ebay). Aznlvrboy said he used a 194 LED bulb that has 5 LED's per bulb and judging by the pics, it didn't make a difference. I did a brief search on Google in regards to making LED's brighter but couldn't find any real solution. Whatever it is that can make the Halo light shine brighter (using the 194 bulbs), I can only assume will also cause the bulb to burn out twice as fast. I imagine you can use other bulbs, like an H1 inside one of the 4 holes for the halo bulbs, but I'm not sure if the heat of a headlight bulb near the halo plastic will cause it to melt.
But you know, that's what's so great about this site and our cars. We do what we have to in order to make something fit or work on our cars. Just because those holes were made for a 194 bulb doesn't mean that the hole couldn't be enlarged to fit another bulb. I won't be trying this as I far too many other priorities and projects that need attention first. For now, I'll try the 194 LED bulbs I bought and see how they look. If they still look like crap, well, I tried, but at the same time, I've achieved what I set out to do, which was having projector headlights, so not having Halo's won't be the end of the world.
how come you couldnt just plug in an H1 bulb with the original ballast and wiring from the H4 kit? That's what i had planned..
oh i looked at the diagram, makes a lil more sense... thats for hi/lowbeam HIDs though isnt it
awesome info BGR glad to see what other people thought aswell, my perspective is ultimately the same. they fit, but they dont, the holes where you mount it fits fine, but under the heads there is a small gap that is noticeable if you look at a low angle, if you can try to find out how to fix that and close up the gap that would be great. Im sure we can find a way to put weather stripping to close it up.
Problems:
The low beam bulbs went out quickly
Within two weeks the outer weather strip wore down and is partly deteriorated
The Highbeams seem so centered and pointed to the ground its barely worth putting them on
Thats my probs other than that 100% i love them
~Gabe
can you adjust the beam pattern? i planned on using regular H1 yellow bulbs for my high beam, not HID
naw I mean of the whole car! lolQuote:
Originally Posted by BGR
Pretty much. The H4 HID kit contained a hi/lo bulb and an connector for the Galant's stock wiring harness, which is H4. The H1 bulb is a single bulb and although it connects to the ballast, you still needed to ignite the bulb - so I had to rig it so that the stock wiring harness was connected to the H4 bulb, however, the H4 bulbs other wire's were disconnected from the ballast.Quote:
Originally Posted by Serstylz2

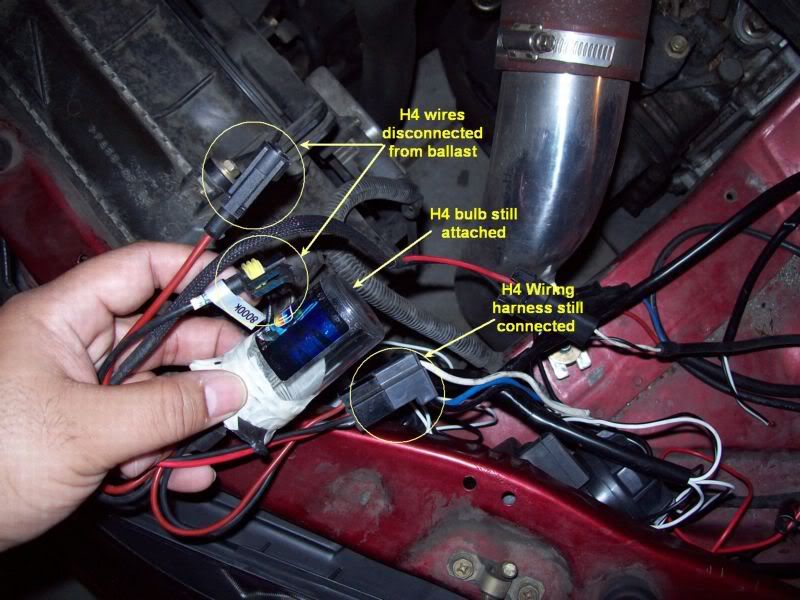

Basically, all I did was unplug the H4 from the ballast but kept the 3 prong wiring harness connected. I then plugged the H1 to the ballast - but the H4 bulb still needed to be connected because of the 3 prong wiring harness.
Hopefully you can make sense from these pics, but if you're going from H4 HID kit and then swapping the H4 to H1 bulb like I did, you'll see how it will.
http://i38.photobucket.com/albums/e1...C/100_0127.jpg
I haven't tried it yet, but I imagine if I hit the high beam switch, this bulb (the H4's hi beam) will turn on as it's still connected to the ballast. I tried disconnecting it from the ballast, but then the H1 HID didn't work, so I left it connected.
http://i38.photobucket.com/albums/e1...100_0128-1.jpg
The H1 HID replacement bulbs had two sets of wires. One set connected to the H1 HID bulb and another set for the high beam (non-HID). I removed this wire. In this pic below, you'll see the wire for the high beam along with the H4 wiring that came stock with these projector headlights. With more time invested, I can make use of these wires, but for now, they're not being used.
http://i38.photobucket.com/albums/e1...C/SDC10042.jpg
co sign...I figured just properly aiming the headlights would fix that issue but I simply haven't gotten around to tryin it out. But yea the high beams are practically useless. I was very disappointed.Quote:
Originally Posted by therev
Yeah my heads are mounted properly nice and snug, the bulbs are in correctly as well. Is there a way to adjust the heads like you would with OEM ones? Because mine are literally pointing like 7ft infront of me straight at the ground, the road is still lit but its rather shitty.
~Gabe
i see. My HIDs didnt come with a 3-prong connector, they came with a red and black wire that i had to push into the 3 prong slots myself. so in essence when i get my h1 bulbs as long as they have that same red and black setup, i just have to slide those into my harness and replace the bulb using the old ballast wires
yea..thats how i have mine
with an hid kit, you can basically swap out any Bulb type as long as they have the red and black wire that plugs into the ballast ,,so if you had h4 bulb and already have your ballast hooked up to the original h4 plug ,, then just swap out the bulb from the ballast with H1 bulb
holy projectors bat-man. I am so glad you all love these lights. I have decided that I am going to buy a set. As you know from when i originally posted this, I found them as I was beginning my build. They turned out awesome but I am having a hard time making a bezel for them though. I will post pics soon. I do love them, but these are just awesome. Still not sure about the LED's but love the halo's. I might just shave them out and fill them in and paint, but we will see. Maybe i can put my projectors in, because the cut off on these looked kinda funky. Anyone else think so?
i gotta find out if the beam pattern is adjustablllee
since you guys made a thread about this. I have the a VIPER alarm installed. As you all know, the lights flash when alarm is activated or deactivated...if I buy these headlights...how do I make them flash too?
I don't want to fry the brain for the alarm.
Huh, i have a viper alarm and the lights dont flash when its activated/deactivated. BUT! as these lights plug right into the OEM harness there shouldnt be a problem and the alarm wont be messed with and will do the same, flash when activated/deactivated
~Gabe
if its anything like stock just tap into the turn signal wiring on the bulb
really? I got mine's installed @ Best Buy for free since I bought it there and I was really happy with the install...Quote:
Originally Posted by therev
I have a viper alarm also. I dont have these headlights but I had USDM and then JDM headlights and when you arm and disarm the parking lights flash
if its just the turn signal bulb that is flashing then there should be no issues so long as you wire everything up right.
Here's how you adjust the projector beam pattern. I also made a post in the tutorial section.Quote:
Originally Posted by Serstylz2
http://i38.photobucket.com/albums/e1...adjustment.jpg
After adjusting the headlights, I've determined that it would be impossible to achieve a beam pattern like yours. Notice in this old pic (I haven't taken any after adjustment pics) how the beam turns upwards? It's impossible to have a straight horizontal line like yours because of the projector lens. There is no adjustment that will make it straight. But after I made the adjustments, the beam is now much higher and I can now see hundreds of feet down the road, instead of less than 50 ft. - so the ugly cutoff line isn't as bad as it used to be.Quote:
Originally Posted by ASTIG
The two yellow arrows on the left are the driver's side pattern and the black arrow and yellow arrow on the right is the passenger side pattern.
http://i38.photobucket.com/albums/e1...d/TGC/beam.jpg
hey BGR so would you say that these project headlights are as bright as the stock ones for the 8g?
that's good. I didnt mean you have to have a just a straight cutoff. its just the prjoector's design why you have that v. what you have to get horizontal is the left part of the beam...which you got about 95% straight. looks good.Quote:
Originally Posted by BGR
oh awesome, def buying since the high beam is adjustable. Thanks man... new projector dood coming to a photoshoot near you!
I don't know if this has been asked... Since these lights are technically USDM specs... there should be no problem putting USDM eyelids.. on them right?
Shouldn't be a problem at all as the length is the same as stock US.Quote:
Originally Posted by es_fact
My GTS headlight covers fit on these as well.
It's been a couple years since I had stock headlights. I swapped those out for some aftermarket blackout headlights I found on Ebay, which were similiar to the 2002-2003 headlights, except it has a clear reflector covering the turn signal, as opposed to an amber reflector. Those blackouts didn't have all the chrome that the stock headlights had and the beam pattern was no where near the quality of stock; The light pattern with those headlights actually sucked pretty bad, but then again, all they need is to have the beam adjusted. (I'm holding on to these blackout headlights, BTW, just in case I need them).Quote:
Originally Posted by USMCSKYLINE
Anyhow, stock headlights have a different bulb setup and a whole lot of chrome for the light reflecting. So when I had HID in the stock headlights, the light pattern was dispersed all over the place - there was no distinct cutoff line as you see with projector headlights. So are these projector headlights as bright as the stock ones? I'd say yes, because it's still an 8000k bulb no matter the light pattern; The actual light that hits the road surface, sign's, etc. is the same for both setups.
These are really growing on me, I might have to pick a pair up.
I tell ya what, I feel 100% better now that I adjusted the height of the beam. Before, I would pull up behind a car when I'm at a traffic light (at dusk, right before it gets really dark) and I would marvel at the brightness of the HID lights in the reflection of the car's bumper in front of me. Well, with these projectors, I would pull up behind a car and I wouldn't even be able to see the light! I could see the foglight reflection, but not the HID. Now with the adjustment, I can now see two perfect semi-purple circle reflections on the bumpers in front of me even at 7:30 in the morning. :)Quote:
Originally Posted by showtime
I'm going to "attempt" to install the amber LED bulbs for the halos tonight. I don't expect any gratifying results as I know my LED's only have 3 lights per bulb, as opposed to aznloverboy's 5 lights per bulb and judging from what he said, I know exactly what he's talking about. The digital picture makes it look much better than it would in person, however, since I'm using amber, maybe it'll be more apparent, like with BMW halos? We'll have to wait and see.
