mitch whens this beast going to be back on the road?
Printable View
mitch whens this beast going to be back on the road?
my goal is before labor day, my turbo should be here in a day or two and im waiting on my crank kit to get here. then i should be getting it put together.
cool, once back together we will have to meet up! or we should just have like weekly/monthly TGC WI meets
Nice dude. That sized intercooler is the same size as mine. Fills up the gap nicely
Dont tell me you got Eagle crank! That would be sweet!Quote:
Originally Posted by Galant306m
Intarfooler!!!
Very Nice 306... Ur build has been a long one but its nice to see it nearing completion...I like the vr4 front as well, are you going to have to cut it up to fit the intercooler?
yea its a big fmic, but i hate small front mounts on cars they just look stupid so i got the biggest on that i could fit.Quote:
Originally Posted by Ivory8g
Nah the egal crank is out of budget so i got one from, http://www.rpmmachine.com/crankshaftkitschrymits.html i got the topline crank with bearings.Quote:
Originally Posted by mko
i test fitted the bumper over the front mound and im going to have to do minamal trimming to make it fit, just for the piping to fit and it should be good other wise i can make it come down. i took my ac shit out and re routed that brake line, also i moved the support bar out of the way by heating it up and bending it in, with a flat hammer and some heat i pounded it flat.Quote:
Originally Posted by phizzalot
Is there anything special about it, or you just wanted a new crank.Quote:
Originally Posted by Galant306m
i want a new crank really, the problem is i have 190k on my car and the crank is out of round so its just cheaper for me to get a new one then have it machined and then get special bearings to make the old one work.Quote:
Originally Posted by mko
thats cheap, mitsu wants alot for them
yea and eagle wants like 725 for one lol, i dont have 725 bux for a new crank that really isnt going to gain me anything but the name. Plus i want to get a quafe tor my trans.
Haha that trans was cheap by the way, its out of a 1994 GS i got it for 250 from a yard has 85k on it and the vehicle was crashed.
Dang dude! I paid 150 shipped for mine. But this is coming together nicely. Make sure you replace ALL exhaust bearings before you turbo. LOLQuote:
Originally Posted by Galant306m
yea my muffler bearings are shot. lol yea im just waiting on parts now.
Mitch, you forgot your blinker fluid at my house. LMK when you want to come pick it up
ooh were you using it as lube? sounds painful oh wait wrong thread...
http://i188.photobucket.com/albums/z...7-03143514.jpg

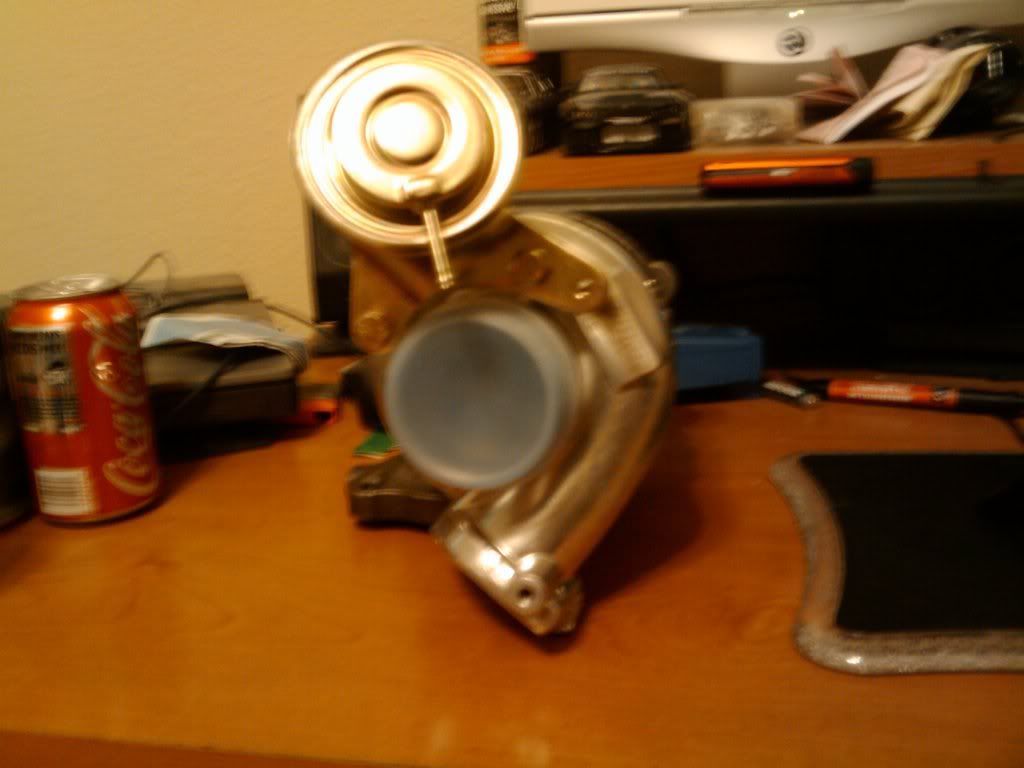

bought a big 20g, cant afford the turbo i want atm, so this will do for now.
Does it have the MHI letters and serial number, or this is an Ebay turbo?
hmmm....i'm just a wee bit jealous...
yea its got the serial number and the mhi
That does not look like a real mhi 20g at all. The compressor housing doesn't even look close unless you got one of those bastard 20g's in which the compressor housing still doesn't look right at all. Another way to tell thats not a mhi 20g is how the internal wastegate is mounted.
its a ebay tdo5 20g, i thought it looked weird when it got here. it has all the serial numbers on it.
Noice!
:060:
I stuck it in my pooper last night, thanks Mitch!
alright guys nearing the end of my build.
crank has been shipped to my grandfathers house, and i will be honing the cylinders, im going to go pick my pistons up and take them to work for a nice hot bath then clean the ring groves so i can reassemble the block after i get it honed.
Now time for some questions that i have,
Timing is the biggest question i have, since i bought the adjustable cam gears does anyone know what to set the at.
With the 5spd swap are the axels the same or is the spline different, the trans is out of a 94gs.
I know that im going to run dsm link, does it matter what year eprom i get? The only reason i ask this is my car is setup for OBD2, but i don't have emissions in my county so i dont know if it will really make a difference.
Ugh since i have the money to buy everything i need now, this is getting really stressful because there are just so many things im unsure of.
Help me out if you have info on any of this, im not completely lost i just need help confirming my thoughts.
for the cam gears they are 63 so they should be advanced half a notch from stock 63 timing
i believe the axles are the same as when i ordered my new axle the only question was abs or non not auto or 5 spd
shouldnt mater what year eprom as long as its eprom and socketed
Since you have a 96, a 2g EPROM will be easiest to wire. If you want to rewire every single wire into the 3-plug 1g setup, then get a 1g EPROM ECU.
My auto axles swapped over to my 5 speed... Im not sure what year my tranny is out of but i think its a 94. Also from speaking with John about tuning and whatnot. DSM link isnt the way to go. Get the ostrich eprom emulator and talk to john what program to run on that. The emulator is all of like 100 bucks and the software is free and from what he said its far better than dsm link. i dont see spending 600 bucks for that shit if you dont have to u know?
Thanks guys, I actually contacted ams about my timing question. They say to set them at tdc and adjust 2 degrees clockwise, so that is solved since the markings on my gears are in degrees.
Since he has a 96 Galant it would be easiest to run some form of 2G tuning, pretty much making ostrich a more difficult setup in this case. As far as DSMlink goes, quite a bit has changed since v2 to v3, not to mention some updates they have coming. I would read further into it and decide for yourself as both are capable of the same thing. That's def a 16G housing on that turbo. Hope it all works out well for you.
see and when that thing came in i thought that turbo looked funny. idk ill give it a shot and if i can make the power i want out of that thing im going to sell it. and get the turbo that i wanted.Quote:
Originally Posted by bmore303
i guess pay pal didn't change the shipping address so my crank came to my house lol

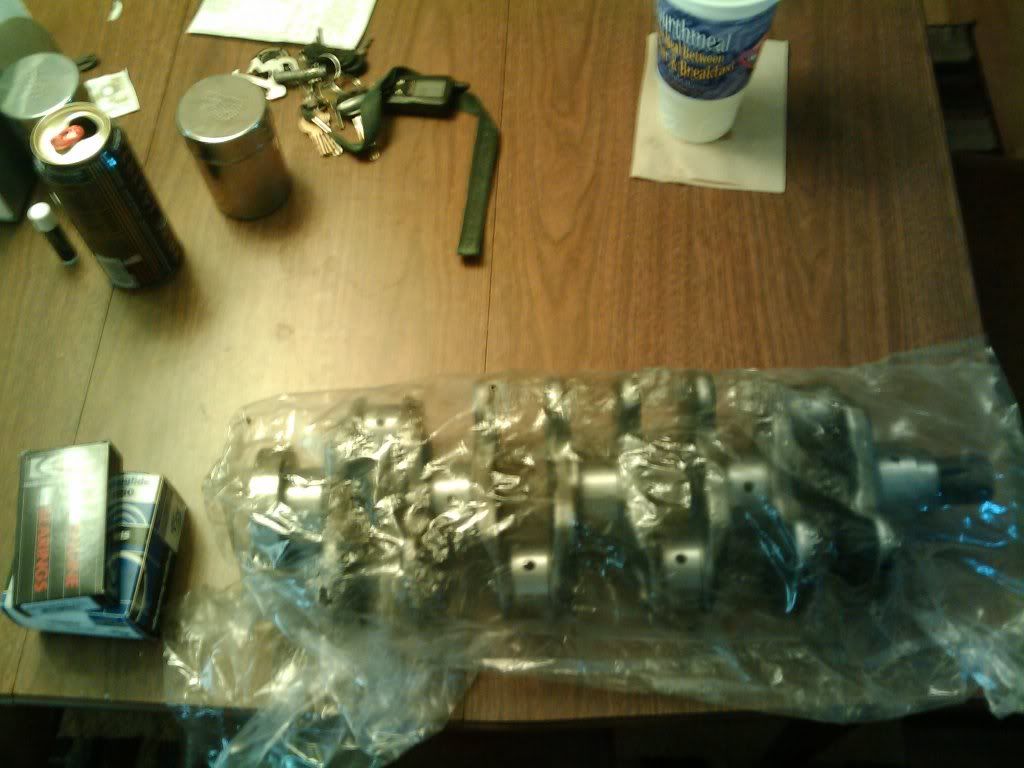

http://i188.photobucket.com/albums/z...7-15135655.jpg
came with bearings.
dang that was fast shipping!
Today I ordered
Eprom from a 95 2g
Clutch
Fidanza 12lb flywheel
Dsmlink
Welbro 255 fuel pump
750cc injectors
And my clutch brake pedal assy
Lol people forget I have an extra 95 eprom ecu. 2 for me :P . I should go to the yard again soon and maybe find a 3rd with my luck.
you should have said something i would have bought it off of you lol, o well the one that i got has the plug with some wires on it so it might be easier to hook up.Quote:
Originally Posted by bmore303
Hey man. looks like everything is coming together nicely. I wish you luck and take notes! Cause im right after you. im just still kind of skeptical about the whole tach and speedometer issue..............
ill gladly get rid of my awd non eprom 4 an eprom if you wanna sell it for a decent priceQuote:
Originally Posted by bmore303
but mitch its all coming together and looking great keep it up bro
What year is your awd non-eprom ecu galanttuner?
